The first, but small update.

I have not found the exact path I want to follow, but I made with photoshop a course idea of what I have in mind. I left the color white, as I am not sure what colors to use just yet.

59impala001

This is the original picture as found on the interweb

59impala002

And so far my version, I put the body lower to the ground, added a sideskirt and filled that panel, but I don’t like it, so I will keep a seam there, I removed most moldings and that will give it a nice shaved look.

59impala003

Basically all the parts that I am going to use, now the clean up starts…sigh…

59impala004

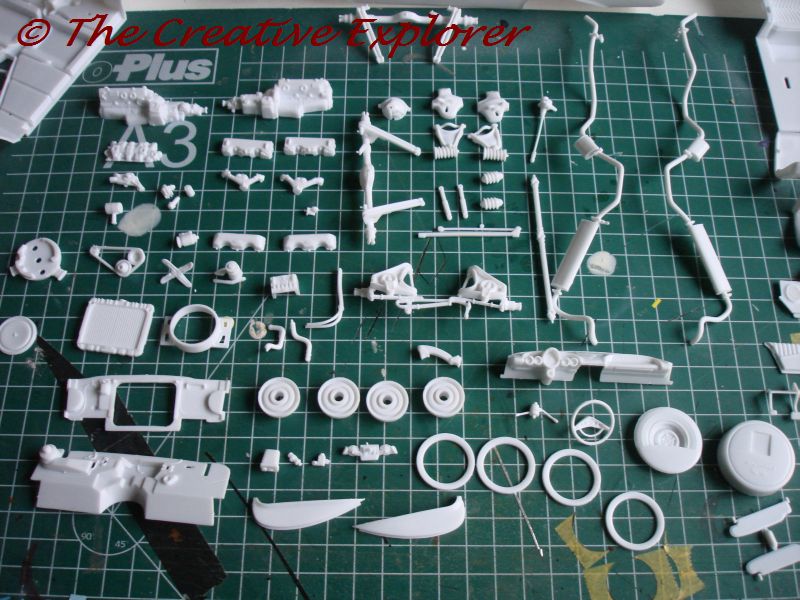

A better picture of the engine parts.

59impala005

The fender skirts are in place, now I have to shape them better.

59impala006

And a little friend came with our christmas tree and said hi!

59impala007

I finally have some pictures ready of my progress, most work is with the body and it will take many more hours to get some paint on it, in the meanwhile I worked a bit on the engine and on the interior:

My little friend again

59impala008

The kit stock fenderwing

59impala009

And the same thing, but shaped with a file.

59impala010

The hood with a halve shaved off emblem.

59impala011

I finished one side here sanding off the chromework.

59impala012

This needs to be adressed too, there is some major heat-shrink to be seen in the wing, which need to be filled.

59impala013

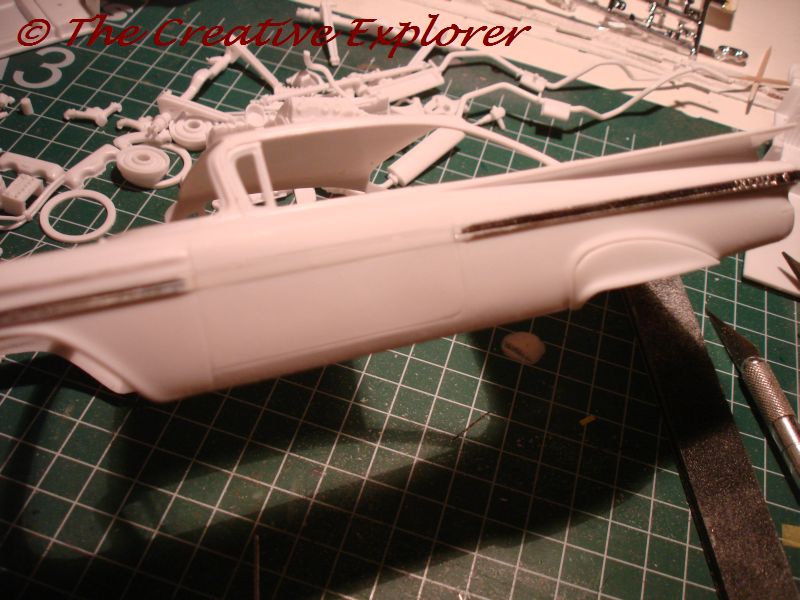

I used the chrome bits as a filler for the body, makes things a bit more easier.

59impala014

59impala015

These bits and pieces will be either replaced or modified, but certainly not used as they are.

59impala016

59impala017

And the first coats of paints. Working with batches does have a lot of advantages.

59impala018

And so we start on building the engine

59impala019

The tranny got 2 coats of silver and gun, otherwise the red is to overwhelming.

59impala020

59impala021

I added some sparkplug wire and testfitted the whole thing

59impala022

Made 8 holes in the firewall, these will be used for the ignition wires, to give it a nice custom look

59impala023

Just like this

59impala024

The interior tub was then dryfitted, since I wanted to clean the enginebay also a bit.

59impala025

I made a template on some styreen

59impala026

And glued it into place.

59impala027

For the wheelarches I used my tool to make a joining piece of styreen

59impala028

Which should look like this on styreen

59impala029

And like this when glued in place.

59impala030

I continued on the interior, and sanded the tuck’n’roll seats

59impala031

And sprayed in in Beige

59impala032

The color is hard to see though

59impala033

I also shot a few parts in the contrasting color, it is California Sage from Zero, but it has a completely different look to it.

59impala034

And the body received some primer as well

59impala035

A little bit better view on the color

59impala036

59impala037

And masking starts again

59impala038

Adding the second color

59impala039

Which gives me this result

59impala040

Well, I finally managed to get the paint on the car, and it was a huge pain in the ass!

A couple of weeks back, I worked on the interior, adding some BMF to all the handles and trim, this shows the handles done.

59impala041

Put the speaker in the rear-seat

59impala042

Put the engine together, needs a lot more detailling, but that will come later.

59impala043

And then I had to work more on the body, it was a ongoing thing, I couldn’t get it right. I hated it. I worked for many weeks to get the body paint prepped.

59impala044

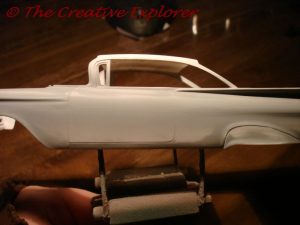

And finally had something decent.

59impala045

59impala046

59impala047

59impala048

59impala049

Today I was finally able to put some color on the body, here is the Bentley Speed 8 British Racing Green, or BS8BRG if you want

59impala050

From a different angle

59impala051

59impala052

I am working here on masking for the second color and added some special effects, with appreciation to my wife’s underwear drawer haha

59impala053

59impala054

Yeah! the ‘Aston Martin California Sage that isn’t’ color shot on the body. After this, it is like christmas, time to unwrap

59impala055

59impala056

And the final product, except for clear, I think I am happy with it, I know I could’ve done better, but considering the situation, I am happy with it.

59impala057

59impala058

59impala059

Well, yesterday was a slow day and the temperature wasn’t bad. So I thought to clear the car. It is I think the biggest obstacle for me during the buildprocess and it needs to be taken at some point.
Today was appearantly the day haha, the whole process takes up almost 2 hours, prepping, cleaning, mixing, shooting etcc….. but the result is nice I think.

The hood, don’t you love how metallic colors come to life after the clearcoat?

59impala060

59impala061

59impala062

And the body, it is hard to see, but I ghosted the sidegraphics a little bit, this makes it a bit more mild and doesn’t give those hard lines to it.

59impala063

Another angle

59impala064

Because everything that had to be clearcoated, now is. I can start working on putting everything together. In this picture I added the upper-suspension parts and the dual-exhausts from which I cut off the back-end, which was a stock-pipe, I will replace that with a custom tailpipe.

59impala065

And the uppersuspensionparts in the enginebay, I left them silk-matt, so it will match the engine and gives a little bit of contrast.

59impala066

After polishing a few dustspics, I could start with the next big thing: Foiling:

59impala067

It took me almost all afternoon and lots and lots of BMF, but it does give that final touch to the car, and so far, nothing can beat BMF.

59impala068

It’s hiney is also finished.

59impala069

All the chromeplated parts were bleached, it had awful moldlines on the bumpers and would be just such an eyesore. Reason for me to get all the chrome off and get them ready for Alclad2, the only problem is that I’ve never done it on so many parts on one car.

59impala070

One of the things I wanted to improve are the springs, I made a set on my own and this is the compare between the kit-part and my-part. It does look a lot better. (IMHO)

59impala071

Here they are, fitted on the chassis, I like it a lot better.

59impala072

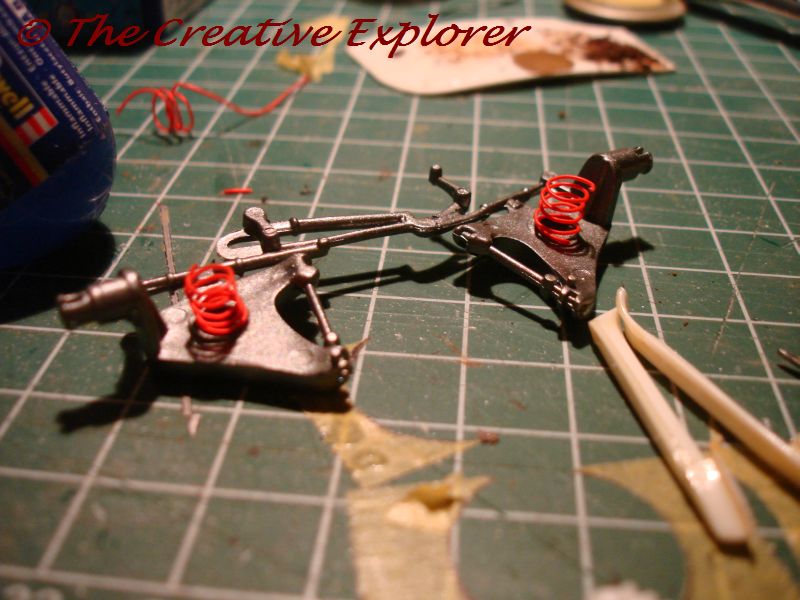

Same trick for the front suspension.

59impala073

And fitted

59impala074

59impala075

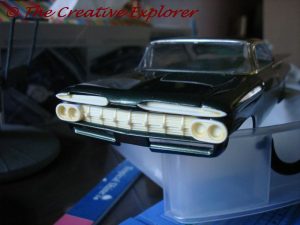

A dry-fit for the de-chromed parts, the hood needs a little bit of tweaking I think

59impala077

And I worked some more on the engine, the horrible V-belt was omitted and replaced with some metal pully’s. Together with a scratch-built v-belt, it does look sharper.

59impala078

59impala079

It is a little bit thinner than realistic, but seen from the top, it is not noticable.

59impala080

And a testfit on the chassis.

59impala081

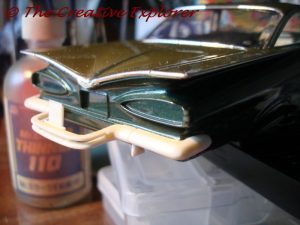

Same dryfit for the back, As you might’ve noticed, this Impala will get a Continental-kit, I just love those!

59impala082

Sorry about the blurry pictures, but this is a fuel-line with 3 separate fuelfilters, purpose is a better fuel-flow with over-capacity.

59impala083

Shortened to fit

59impala084

And fitted to the engine, replacing the molded in fuel-lines from the kit.

59impala085

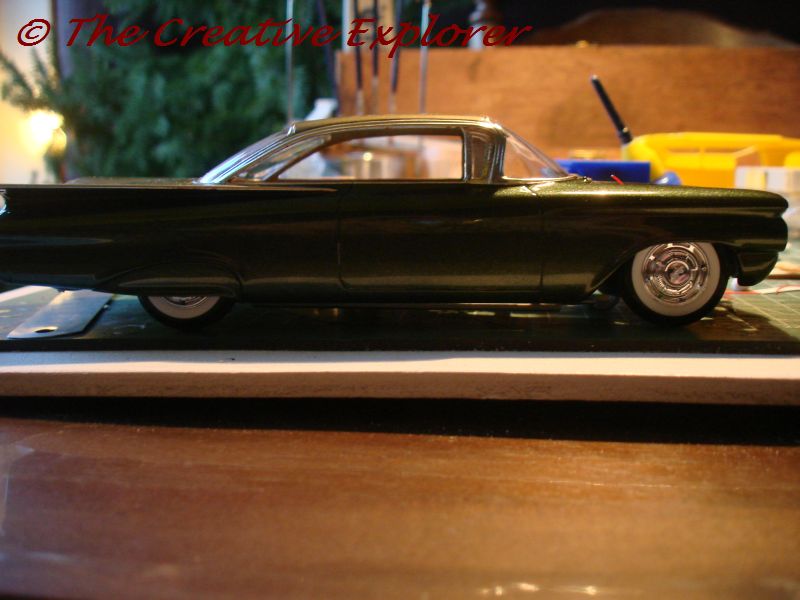

The wheels are still a mystery, I tend to go with the stock-wheels, but I don’t like the hubcaps, I guess I need to look through my parts-box. The idea of fitting modern alloy’s has passed, I believe this is a nicer look with the whitewalls.

59impala086

59impala087

I flocked the interior…

59impala088

And the (parcel?)-shelf

59impala089

The finished doorpanels, I really like the look it has.

59impala090

After the interior got flocked, I could start assembling the interior. I still need to paint the steering column, but that is a little thing to do. After that, the dashboard can go in. And I can finish detailling the interior

59impala091

Test-fit in the car, don’t you love how shiney it is?

59impala092

59impala093

Another thing that bothered me, was the crankshaft driven fan. I got the fan and fixed it in the radiatorshroud, by fixing it in between two metal rods, now it represents a electric-powered fan.

59impala094

Which is now fitted in the engine-bay

59impala095

Because this car has had some minor/major modifications, dryfitting is been done often. It gives me the space I need for making changes and show me if I made the right aestatical decissions.
One thing I learned through this dryfit is that the way the interior goes into the car, can not be followed from directions. This is due to the modified enginebay and the sparkplug leads. This had consequences in lining up the interior right for glueing it to it’s chassis, rather than being glued to the body as it should.

59impala096

59impala097

I put the sparkplugwires through the firewall in this picture, but didn’t set it up properly

59impala098

I made a teomplate for the headliner. It is a often-forgotten aspect of a modelcar, but I find it important enough to have it in each car, even though it has never been discoverd yet. haha.

59impala099

A top view reveals the fuel-lines, v-belt and the sparkplug wires.

59impala100

And finally the solution for the wheels!!!!!!!!WHOOOHOOOO!.
I was sitting behind my computer, wandering through my thoughts and through my stash of modelcars (which I am a little proud of). At a sudden moment, I looked at my ’49 Mercury kit from Revell. And then it struck me, didn’t that kit had some Sombrero’s? I remember from the last time I made that kit, I used the reversed steelies. So I had to have those Sombrero’s somewhere. It took me a half an hour of digging, but found them in good condition on the chrome-tree. Next problem was to find 4 matching tires, which also took me a good half an hour.
The next day, since it was late night, I took them down and tried one of the hubcaps on the ’59 tires. It was a perfect match and gives the right look to the project. Me likey!

59impala101

In one of my earlier posts, I told you I didn’t like some parts and would modify or scratch them. The springs were one, the shocks were also awful. I am sorry about this somewhat blurry picture, but I replaced the kit part with a simple shock setup. I got 2 matching pieces of tubing, put them together (did not glue them!, as it is hard to have them exactly the right size, this way, they can be slided into place) and add 2 brass rings to them. A nice, simple and cheap way to make shocks.

59impala102

And fitted.

59impala103

Yesterday I sprayed the parts that needed to be chromed with alclad black and alclad chrome. Unfortunately, the pictueres don’t tell the whole story, they are nice and shiney, but look dull in the pictures.

59impala104

59impala105

And for now the last one:
I added the seatbelts in the car, simple but effective.

59impala106

I think this might be my last update, the Impala nears completion and it will be just a few tiny little parts that has to be placed, before I can call it done.
It was a kit with mixed feelings, although; when I am honest, most of the downside was created by me, changing the kit. haha.

I finished the dashboard by spraying the dash in the contrast-color and the steeringwheel in the body-color.

59impala107

The headliner was airbrushed and placed.

59impala108

These next 2 pictures don’t really show it, but by using clear-glue (Humbrol) I made small lenses for the dials.

59impala109

59impala110

The springs from the hood-hinge were removed and detailed with a somewhat course scratch spring

59impala111

And some pictures of the finished interior

59impala112

59impala113

59impala114

59impala115

I added wires to the alternator and made a metal rod as a guide for the coolant hose

59impala116

The metal rod bends easier and when I have the shape I want, I get some black insulated wire and replicate the metal rod.

59impala117

I’ll show you guys a little trick of the trade. I have thought about this not that long ago and this is the first project where I am going to try this on.
I always had a hard time glueing mirrors, antenna’s and what not to the body, last thing you want is to screw up your nice paintjob.
And one night I got it, not sure if the trick already exists, but this came from my very own 2 braincells.
This tricks also makes the piece better attached to the body, with a whole lot less chance of falling off.
First, I drilled a 0,5mm hole in the part

59impala121

Than inserted a 0,5mm metal wire in it.

59impala122

After that, I drilled carefully a 0,5mm hole in the body

59impala123

And inserted the part into the hole. As I can see it, you have 2 options; either glue it, with a tiny bit of superglue, or not glue it. I chose the last, so when you take it with you to a modelshow, you get the parts off and store them separate, safely.

59impala124

Then I added very, very thin metal rods for the antenna’s and I am done

59impala125

59impala126

And while I was busy with the rods, I also made me some Curb-Feelers, I thought it would give the car a very nice touch.

59impala127
